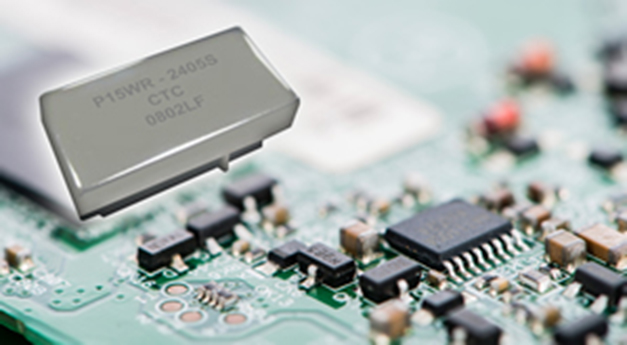

A series of compact 15W high performance DC-DC converters from CTC are available at Luso Electronics. They offer outputs ranging from 3.3V up to 15V, operation over a wide temperature range and power efficiencies of up 87%. Encased in nickel plated copper, the new RoHS compliant converters are available in two versions: the PC15WR offers a 2:1 wide input voltage range and the PC15WR4 variant provides a 4:1 wide input voltage range.

All modules within the series offer isolation voltage of 3000VDC (for one second), continuous short-circuit protection and overload protection.
Other electrical specifications of the series include ripple and noise of 75mV (peak-peak maximum) and output voltage tolerances of 1% maximum.
Meeting international safety standards including EMI compliance meeting EN55022, the devices also feature remote on/off control.
Another key feature of the range is that it meets strict no-load power consumption limits of 0.25W maximum to ensure end products will comply with energy-efficiency standards worldwide.
